Introduction
The look and feel of the space can be customized using Preferences in the Space Management settings. The component available to be customized is currently 3D Workspace.
Who can use this feature?
| Super Admin | Site Manager | Team Admin | Surveyor | Collab- orator |
Viewer | |
| Set Preferences |

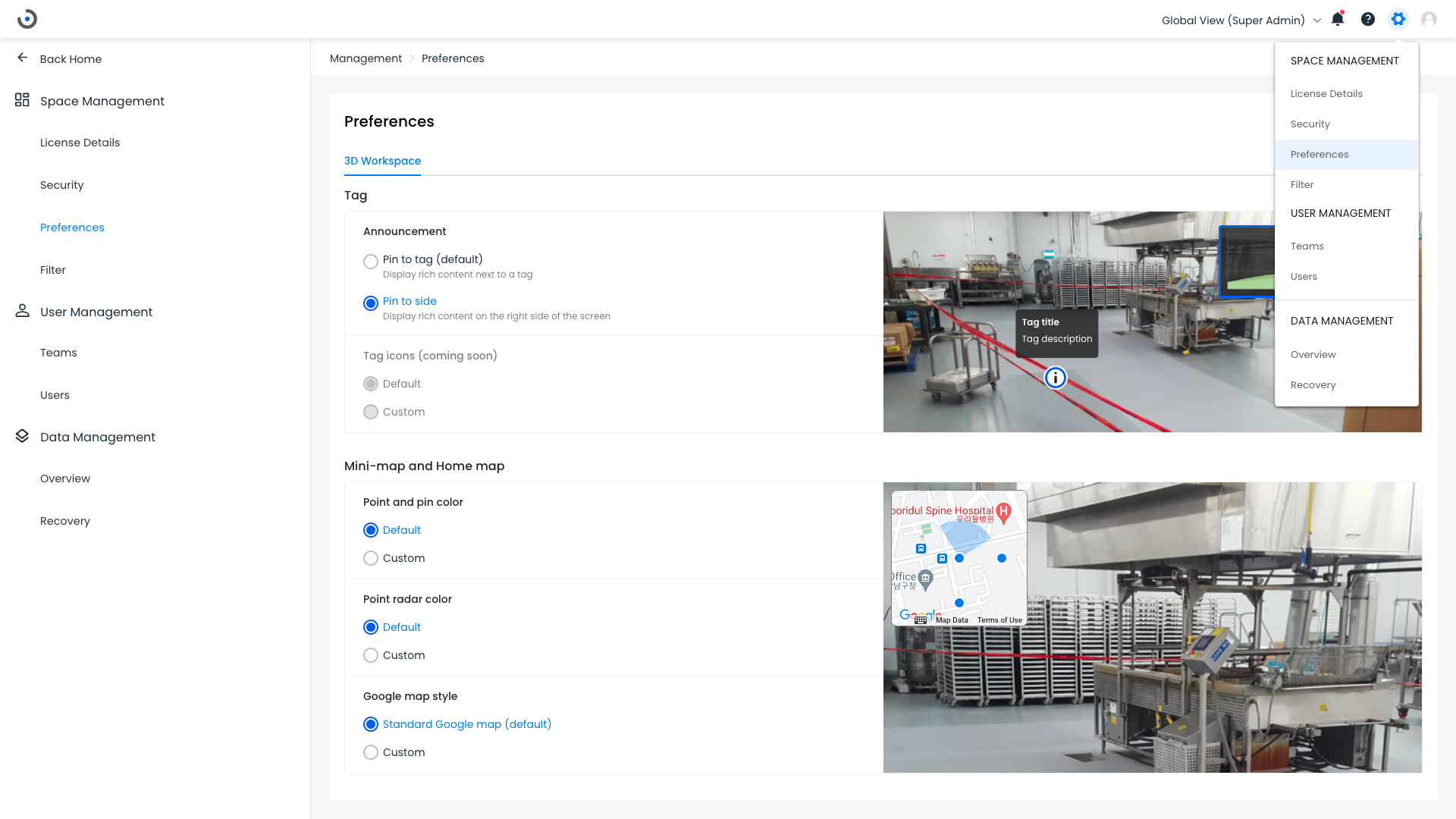

Setting the Preferences for 3D Workspace
The below-listed options for the 3D Workspace can be customized by selecting the option. Resetting the option to default applies the Beamo default styling.
- Click [Settings] in the header.
- Select Preferences from the pulldown.
- Customize the following options.
- Click [Save].
Tag
Announcement

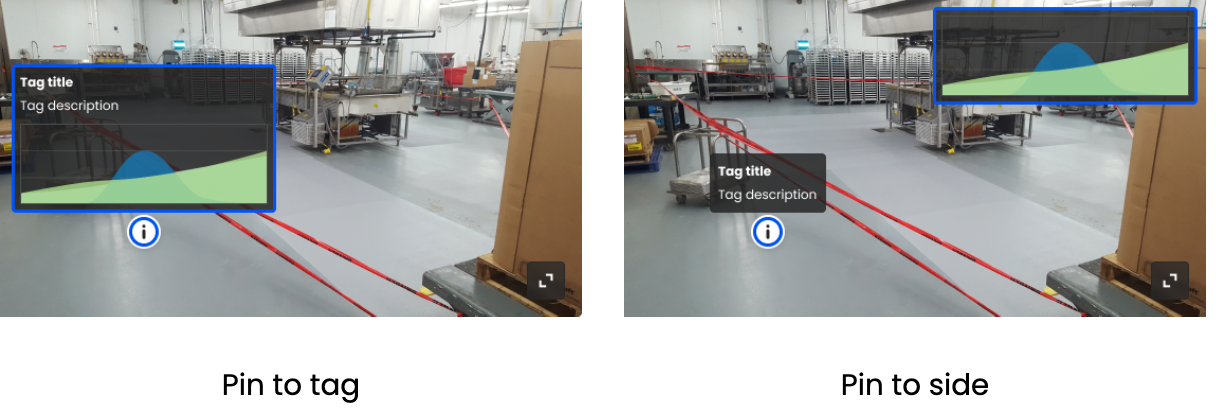

This option changes the style of how content is displayed in the 3D Workspace if the option Show this content in 3D Workspace is enabled.
- Pin to tag (default) - displays the content right next to the tag
- Pin to side - displays the content on the right side of the window
Note: Changes can be previewed on the right side

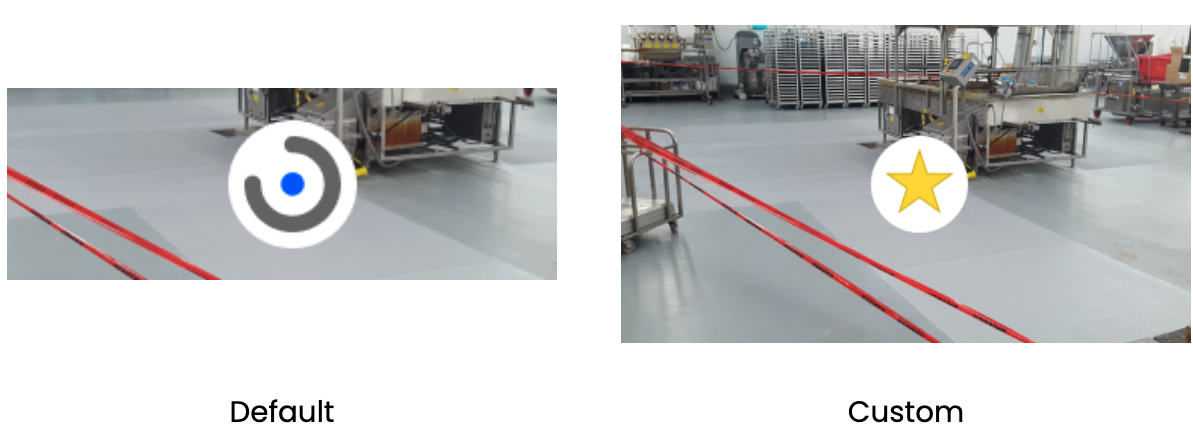

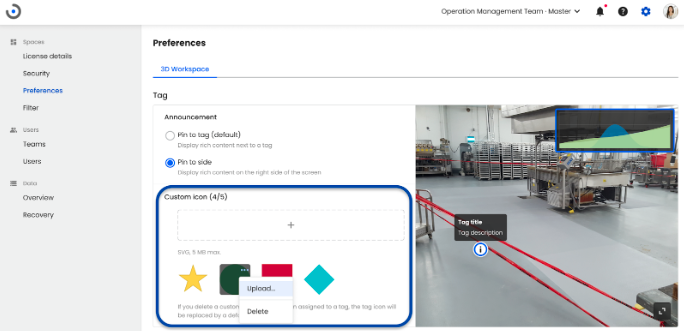

Custom icon
This option adds 5 customized icons, SVG file, each file 500KB Max.
- Create - [+] to add a new customized icon.
- Upload - Replace the existing icons.
- Delete - Delete icon and the existing icon will be replaced with i/blue tag icon.

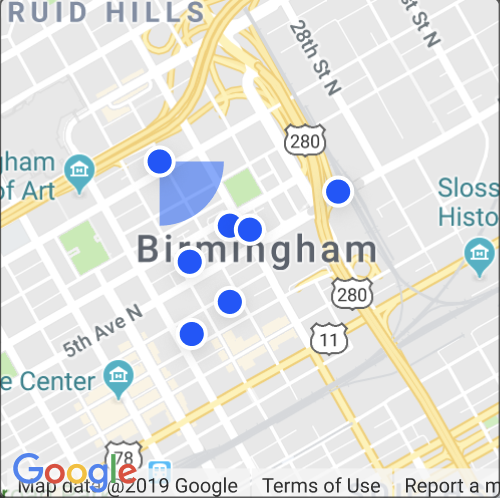

Mini-map and Home map
Point, pin and point radar color
These options change the styling of the point color of the Mini-map, pin color of the Home map and the point radar color of the Mini-map. This styling applies for indoor and outdoor maps.
- Default - Beamo default styling is applied
- Custom - Pick with the color selector or directly input the hex value
Note: Changes can be previewed on the right side
Google map style
This option applies a custom Google maps styling to the Mini-map, in case of outdoor plans, and the Home map.
- Standard Google map (default) - The default Google map styling is applied
- Custom - Paste and save the JSON code to customize the presentation of the standard Google map with style options. See style reference for maps static API for more information on how to create the JSON code.
Note: Changes can be previewed on the right side
360° nadir image
This option changes the 360° nadir image used in the 3D Workspace.
- Default - Beamo's default 360° nadir image is used
- Custom - Upload a PNG image (500KB max)
Note: Uploaded image can be previewed on the right side
Loading screen image
This option changes the loading screen image used in the 3D Workspace.
- Default - Beamo's default loading image is used
- Custom - Upload a png or jpg image (500KB max)
Note: Uploaded image can be previewed on the right side

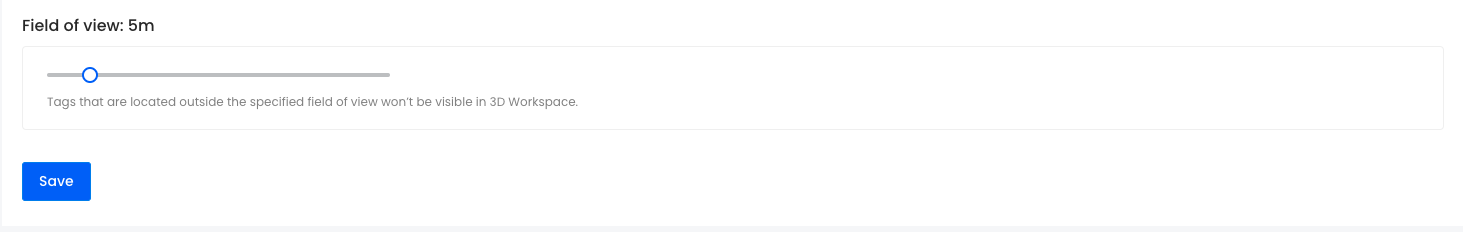

Tag Field of View
This option changes tag icon visibility inside a point’s 360° image.
- You can set the Tag Field of View using the slider control.
- Default - 20m
- Custom: Move the bar (in 5m increments) to define a range from 5m to 40m.
Note: The Tag Field of View (distance) setting can also be configured in the 'Plan Manager' and the '3D Editor'.

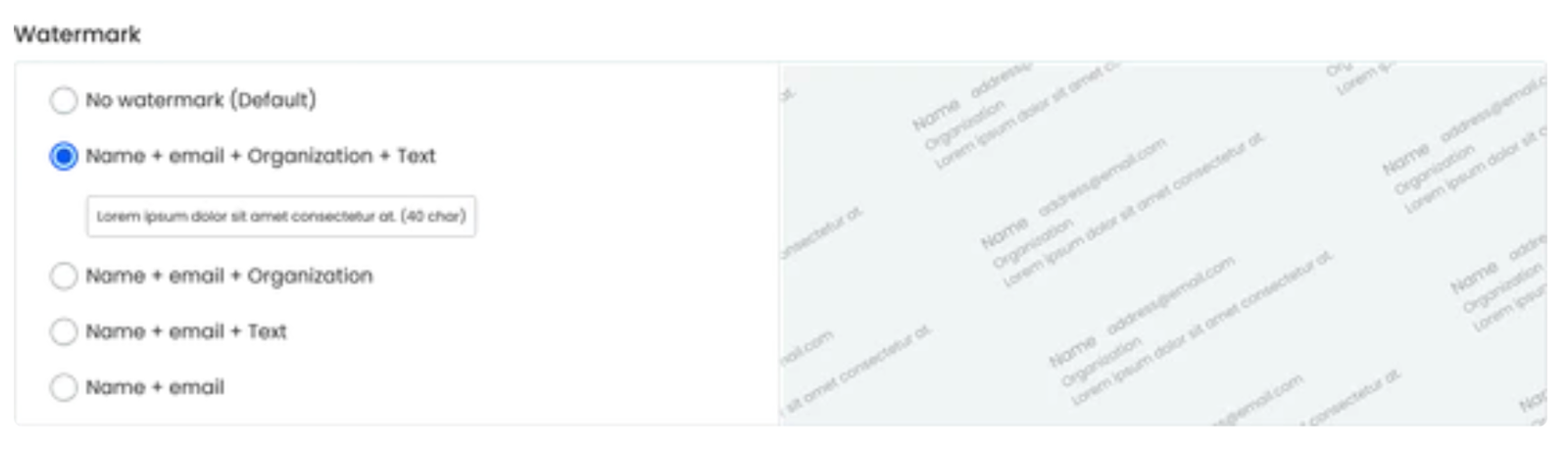

Watermark
This option changes the watermark setting in 3D Workspace.
- No watermark (default)
- Name + email + Organization + Text → 3 lines
- Name + email + Organization → 2 lines
- Name + email + Text → 2 lines
- Name + email → 1 line

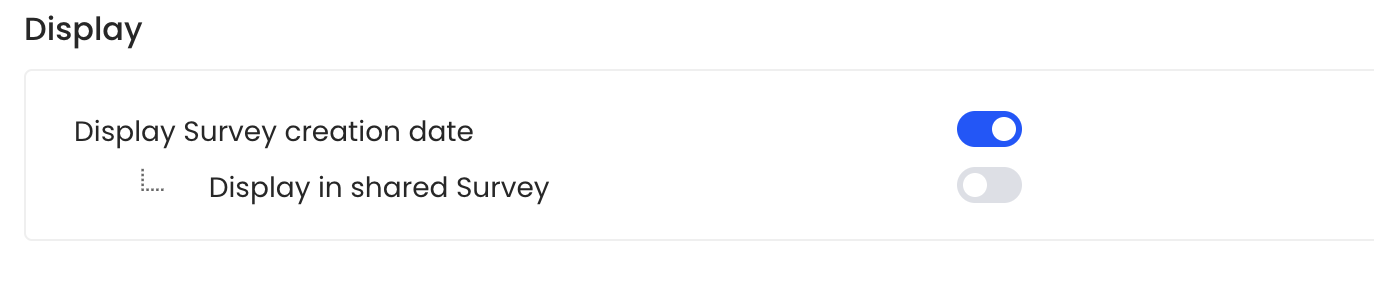

Display Survey Creation Day
"Use the toggle button to set whether to display the survey creation date.
- Default: The creation date is not displayed in the survey.
- Custom: When the toggle button is activated, the creation date is displayed in the survey.
When the 'Display Survey Creation Date' toggle button is activated, the creation date will not be shown on the survey screen, and an additional toggle button labeled 'Display on Shared Survey' will appear.
