Annotating and Downloading 360° Images

Introduction

In the 3D Workspace, you can capture the currently displayed 360° view as a screenshot and add annotations—such as comments, arrows, or text—directly onto the image.
You can then download the annotated screenshot to share it with others or include it in reports.
This makes it easy to highlight specific areas and communicate more intuitively and effectively.

Who can use this feature?

	Super Admin	Site Manager	Team Admin	Surveyor	Collaborator	Viewer
3D Workspace

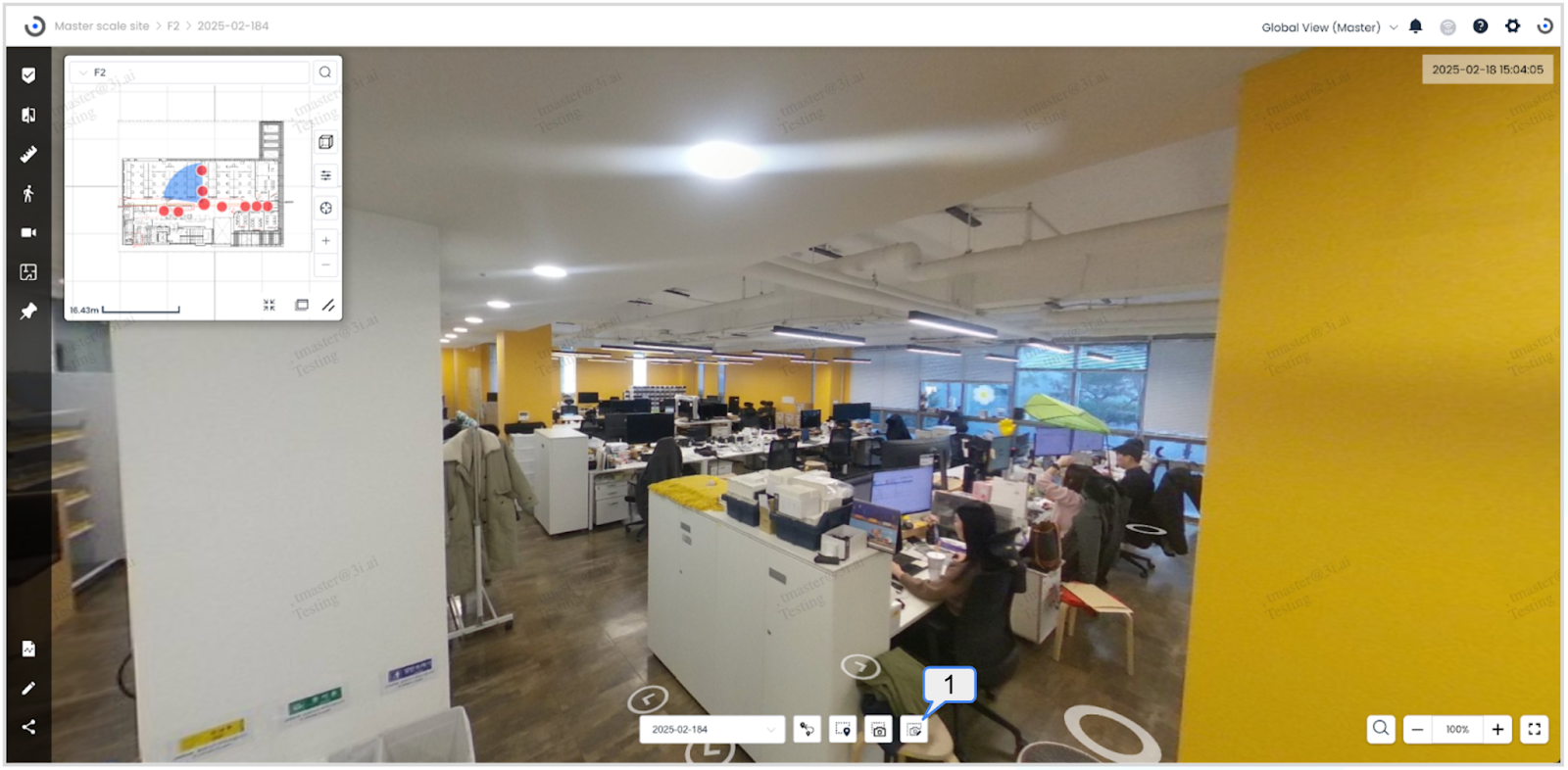

To annotate the 360 image, click [Annotate] button in the 3D Workspace.

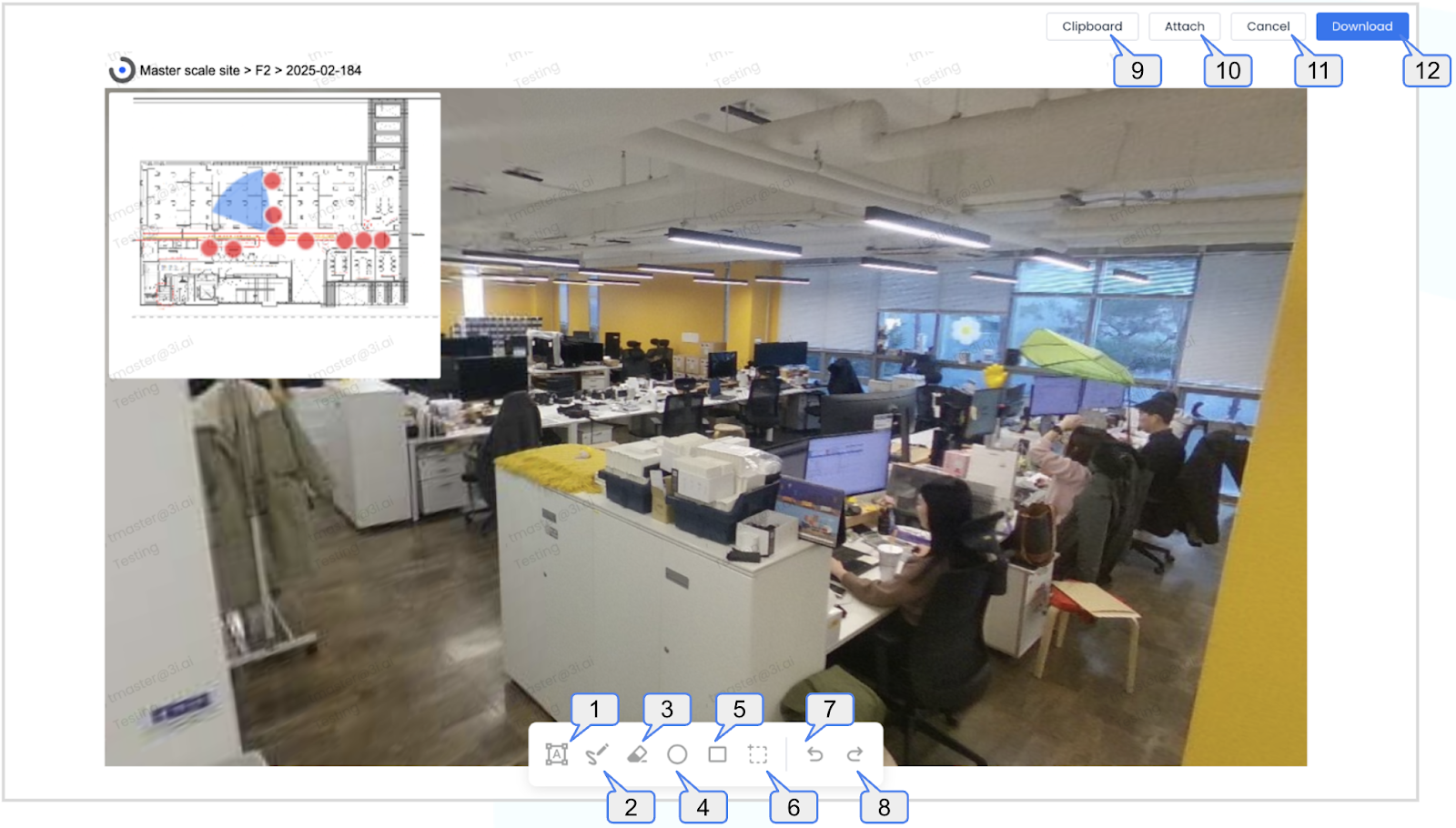

360 image Annotation UI

No.	Name	Description
1	Text Box	Allows text input and drag movement; also supports changing font size and color.
2	Pen Tool	Enables freehand drawing; pen color and thickness can be adjusted.
3	Eraser	Drag to delete drawings, shapes, or text as needed.
4	Insert Circle Shape	Allows adding, moving, resizing, and changing the color of circular shapes.
5	Insert Rectangle Shape	Allows adding, moving, resizing, and changing the color of rectangular shapes.
6	Crop (Image Trimming)	Drag to select an area to crop and remove unnecessary parts of the image.
7	Undo	Allows undoing actions across multiple steps.
8	Redo	Allows redoing actions across multiple steps.
9	Save to Clipboard	Saves the edited image to the OS clipboard.
10	Attach to Comment	When launched in comment input mode, attaches the image directly to the comment.
11	Close	Discards all edits and closes the window.
12	Download	Saves the edited image locally.
