Navigating the 3D Editor is available as part of the Beamo Plan(s) Essential, Pro, Enterprise.
Learn how to get more out of Beamo with Plans and Packs.

Introduction

Edit points (360° image and point location information) and update the plan in the 3D Editor.

Who can use this feature?

  Super Admin Site Manager Team Admin Surveyor Collaborator Viewer
3D Edtor :check_mark: :check_mark: :check_mark: :check_mark: :minus: :minus:

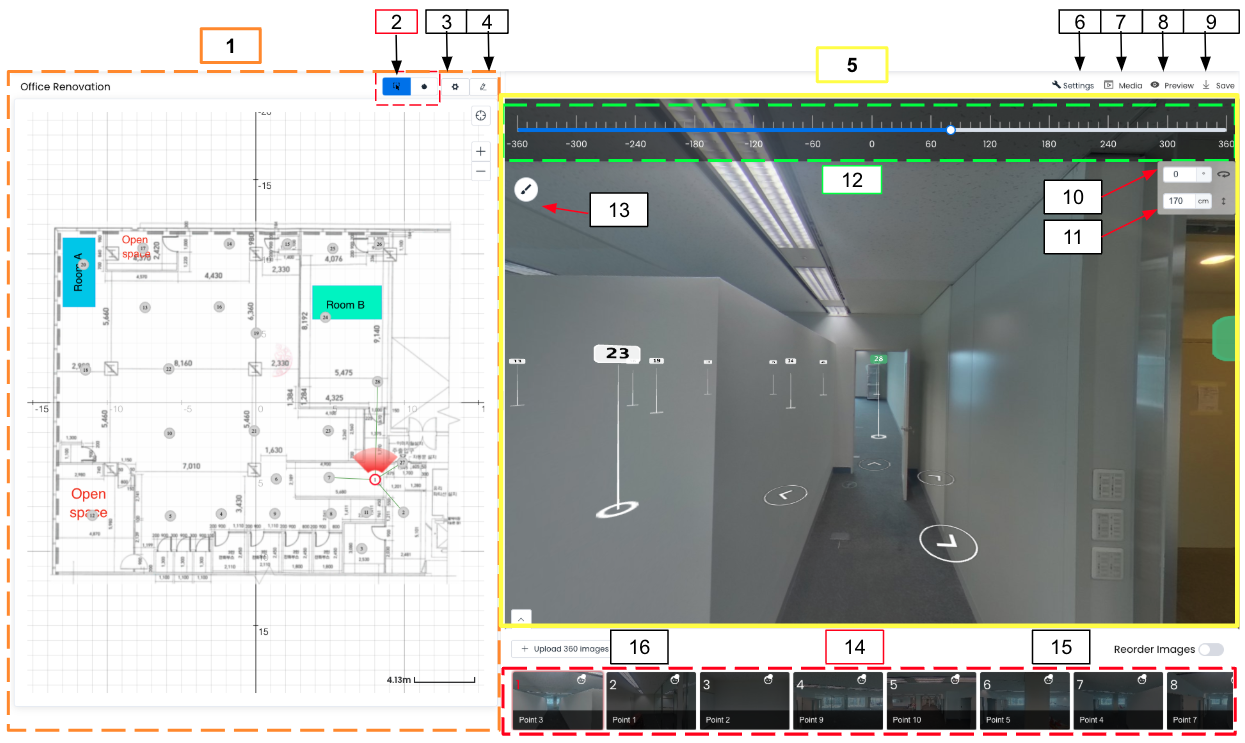

3D Editor UI




1

Plan

Plan for the survey.  *Google Maps for the outdoor surveys,

2

Plan tool

Edit points and move the plan.  *Disabled with the outdoor surveys.

3

Plan setting

Set scale, opacity, and upload the specific plan associated with the survey. *Disabled with the outdoor surveys.

4 Plan editor

Edit only the specific plan associated with the survey. *Disabled with the outdoor surveys.

5

Viewer

360 image view

6

Setting

Ceiling height, Camera height for whole survey, Auto all scenes blur, Arrow only navigation (not displaying the hotspots on the 3D viewer), display all points without distance limitation.

7

Media

Set the opening view of the survey

8

View

View the 3D Workspace

9

Save

Save the change

10

Image Rotation

Rotate the 360 images by inputting the degree

11

Camera height

Set the camera height of the individual point's 360 image

12

Control bar

Rotate the 360 images by clicking and dragging on the bar.

13

Blur mode

Manually blur the 360 image

14

360 images

360 images are displayed in the order they were captured

15

Reorder scenes

Reorder the 360 images.  *Disabled with the outdoor surveys.

16

Add 360 images

Add 360 images to the survey.  *Disabled for the outdoor surveys.
