Introduction
You can use IoT tags to visualize IoT data in 3D workspace. You can create IoT tags individually or in bulk.
Note: To use this function, you need to configure the Grafana Configuration & Connecting Grafana to the Site by your admin. For detail see here.
Who can use this feature?
| Super Admin1 | Site Manager2 | Team Admin3 | Surveyor4 | Collab- orator5 |
Viewer6 | |
| IoT Tag |
Note: 1, 2. Data added by the Super Admin and Site Manager within the 3D Workspace is shared/visible to all teams unless a particular team is specified.
3, 4, 5, 6. Permissions are limited within the scope of their team.
Adding a IoT Tags

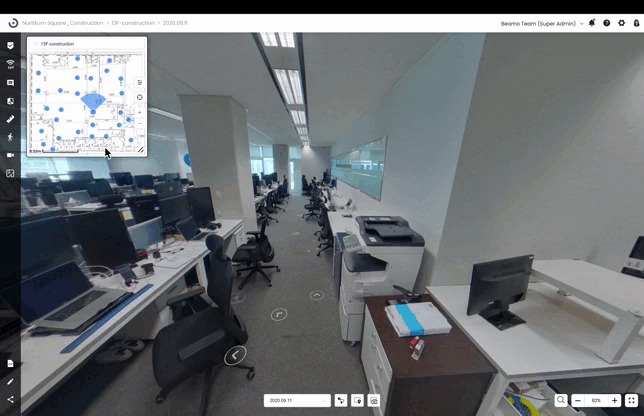

- Activate the IoT Tag feature by clicking IoT icon on the side bar.
- Click [+Add] and select [Single] to create a single tag and [Bulk] to create the multiple IoT tags at once.
- Drag the Tag icon itself in the 3D Workspace to edit the height or change the position of the by moving the white circle under the tag icon.
- Enter Tag Title (required).
- Add the Tag information.
- Upload media (image, video, or PDF file).
- Click [Add IoT Sensor] and select the sensor from the Grafana dashboard list.
- Enter the width and height of the preview window if needed.
- Enable [Show this content in 3D Workspace] to display the content of HTML in the 3D viewer.
- Enable [Announce] to display the tag note in the 3D viewer.
- Add attachments.
- Click [Save].
Note:
- There is no limit on the number of Tags that can be added to the survey. You can attach the file types below:
-
- Image: JPG, PNG, GIF, TIF
-
Media: MOV, MP4, AVI, WMV, FLV,
-
Document: PDF, DOC(X), PPT(X), XLS(X), TXT, RTF
-
Zip file: ZIP
- The tags displayed in the tag list are ordered by number, alphabet (in ascending order).
Caution: Files added to one Tag may not exceed a total of 100 MB, and each Tag may only have a maximum of 5 file attachments.
Editing and deleting a IoT Tags

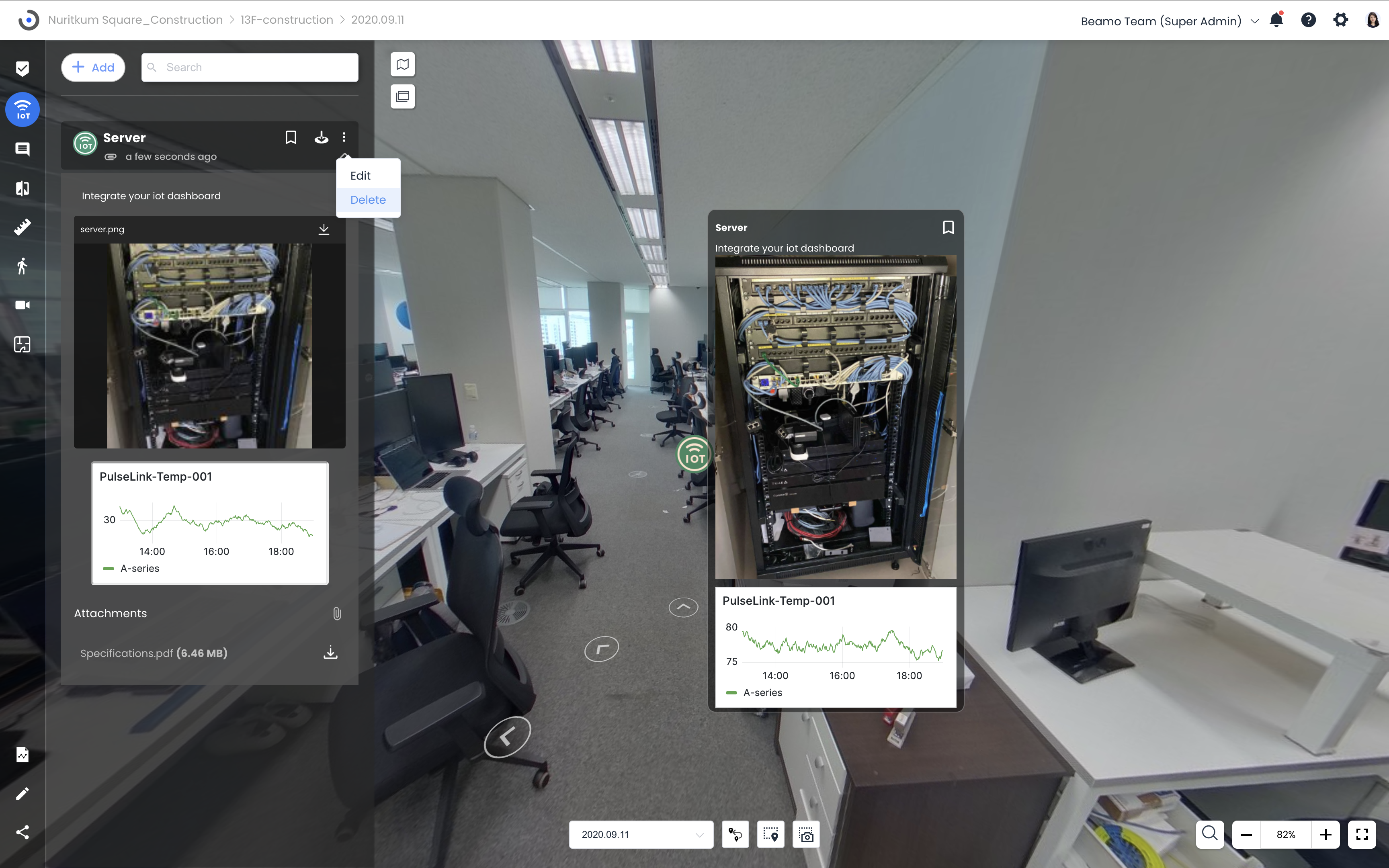

- Click the kebab menu button to select the [Edit] in the kebab menu to edit the tag.
- If you want to delete the Tag, click [Delete].
- Click [Save] to save changes.
Managing Folders
-
Creating Folders
- Click the [+ Add] button and select [Folder].
- Specify a folder name.
- Drag and drop tags into the folder.
-
Deleting Folders
- Deleting a folder also removes all tags within it.
- Deleted items cannot be recovered.
-
Managing Folders
- To rename a folder, click the [Kebab Menu] and select [Rename].
- To remove a tag from a folder, drag it to the [← Back] button.
-
Folder Hierarchy
- Folders support up to 2-Depth levels.
- Subfolders can only be created within 1-Depth folders.
Navigation & Sorting
-
Navigation
- Navigate tags through 1-Depth and 2-Depth folders.
- Clicking a specific folder displays the tags within it.
-
Sorting Criteria
- All folders and tags are sorted in ascending order by name.
- Sorting order: Alphabet → Numbers → Korean characters.
UI/UX Features
-
Drag and Drop
- Move folders and tags by dragging and dropping them with the mouse.
-
Announcement Feature
- Set specific tags as announcements to highlight them in the 3D workspace.
-
Tag Information Preview
- Click a tag to preview its attached files, description, and media.
Important Notes
- No Recovery: Deleted folders and tags cannot be restored.
- File Size Limit: Attached files cannot exceed 100MB per file.
- Maximum File Count: Each tag can have up to 5 files attached.
- Server Configuration: To display content in the Beamo 3D Viewer, the domain ‘Beamo - 360° photo-based digital twin’ must be added to the server settings.
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of tags and folders I can create?
A1: There is no limit to the number of tags and folders you can create.
Q2: What file formats are supported for tag attachments?
A2: Supported formats are as follows:
- Images: JPG, PNG, GIF, TIF
- Videos: MP4, MOV, AVI, WMV, FLV
- Documents: PDF, DOC(X), PPT(X), XLS(X), TXT, RTF
- Compressed Files: ZIP
Q3: How are tags sorted in the tag list?
A3: Tags are sorted in ascending order by name.
