2. Setting Up Grafana Alarms

1. Introduction

The Beamo IoT Alarm System integrates with Grafana to receive IoT tag and alarm data. When an alarm is triggered in Grafana, Beamo captures and delivers it to users in real-time.

Users can monitor alarms through the Beamo web interface and respond immediately via web and email notifications. Additionally, Beamo stores alarm history, allowing users to analyze past data, track equipment status, and plan maintenance more effectively.

By consolidating IoT tags and alarm data, Beamo enhances intuitive IoT monitoring and management, enabling users to efficiently assess operational status and take prompt action when needed.

Who can use this feature?

	Super Admin	Site Manager	Team Admin	Surveyor	Collab- orator	Viewer
IoT Alarm Settings
Receiving IoT Alarms
Viewing IoT Alarm History

2. Key Features

• IoT Settings Management: The alarm function is available when IoT tag registration is enabled.
• Real-time Monitoring & Alarm Triggering: Alarms are automatically generated when specific conditions are met.
• Web & Email Alarm Support: Receive web and email notifications when an alarm is triggered.
• Alarm History: Review and analyze past alarm occurrences.
• IoT Tag History Lookup: Check event history and update information for each tag.

3. Managing IoT Alarm Settings

3.1. Configuring IoT Alarms

• Log in to Beamo.
• Navigate to Settings → IoT Settings.
• Enable or disable IoT Settings to activate IoT tag registration and alarm functionality.

3.2. IoT Alarm Tab Activation Conditions

• The IoT Alarm Tab is activated only when an IoT tag with an active alarm exists.
• If no alarms are present, the IoT Alarm Tab remains inactive.

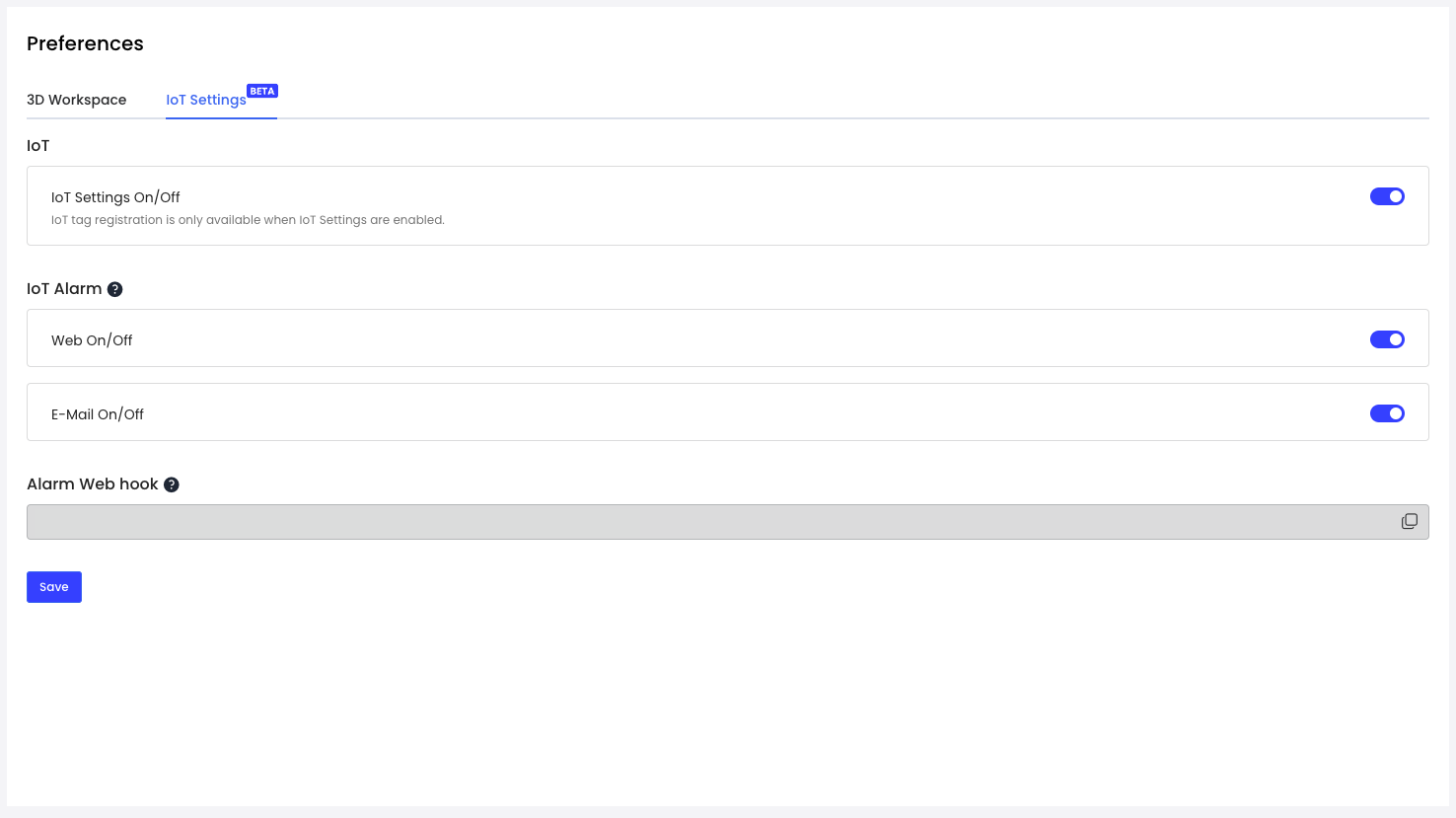

3.3. Managing IoT Alarms & On/Off Settings

1. In the IoT Alarm section, you can enable or disable the desired alarm functions.
2. Web Alarm On/Off: Activate or deactivate alarms in the Beamo web interface.
3. Email Alarm On/Off: Configure whether to receive email notifications when an alarm occurs.
4. Once the settings are complete, click the Save button to apply the changes.

4. How IoT Alarm Works

When web alarms are enabled, the following actions take place:

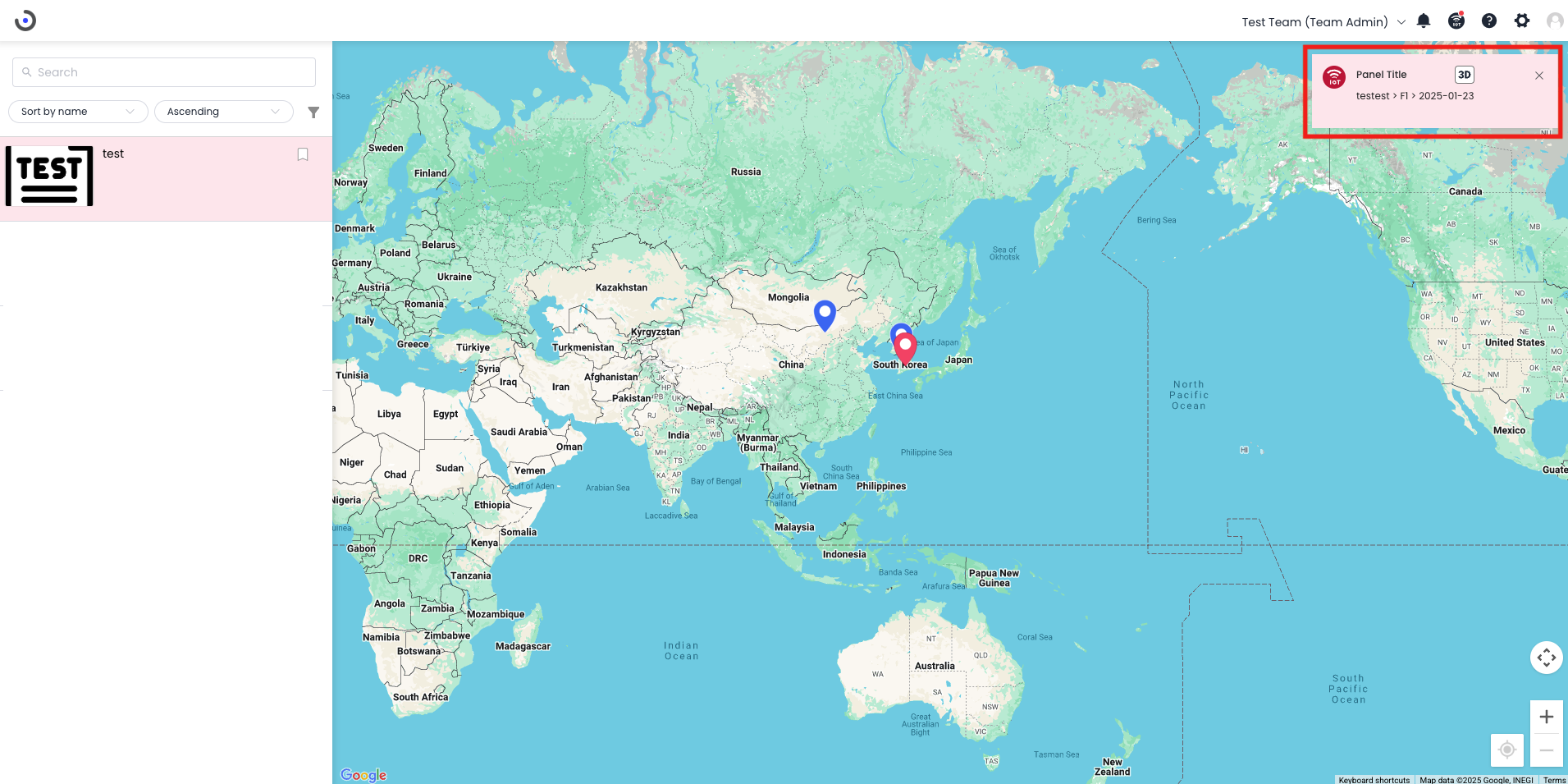

4.1 IoT Alarm Panel Display

• When an IoT alarm is triggered, an IoT Alarm Panel appears on the right side of the screen.
• The panel includes the following information:
  • IoT Alarm Icon (Warning Indicator)
  • Panel Title (Tag Name)
  • Location Information (e.g., Site_Name > Plan_Name > Survey_Name)
  • 3D Button: Allows users to view the corresponding tag data in the 3D Workspace.
  • Close (X) Button: Enables closing of individual alarm panels.

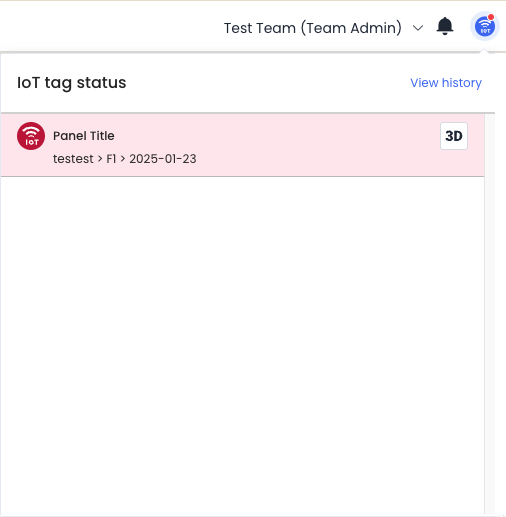

4.2 Viewing IoT Tags in the Left Panel

• Users can check the list of IoT tags in the left panel.
• Specific IoT tag-related data can be accessed directly from the panel.



5. Viewing IoT Tag History

You can check the occurrence history and update information of IoT tags.

• Navigate to the IoT Tag History menu.
• The following information can be reviewed:
  • IoT Tag Title: Name of the tag
  • Location: Registered location of the tag
  • Occurrence Date: Timestamp of the IoT tag event
  • Last Updated Date: Last modification time of the tag
• Click [Sync data] to update the latest information.
• Use the pagination feature to browse past data.

6. Troubleshooting

6.1. When Alarms Are Not Functioning

• Ensure that IoT settings are enabled.
• Verify that the alarm settings in Beamo are configured correctly.
• Check the network connection status.
• Confirm that notification reception settings are enabled.

6.2. When Email Notifications Are Not Received

• Check the spam folder in your email.
• Ensure that email notifications are enabled in Beamo settings.



Please refer to the following document for Beamo and Grafana integration.

Beamo IoT - Grafana alert manual
